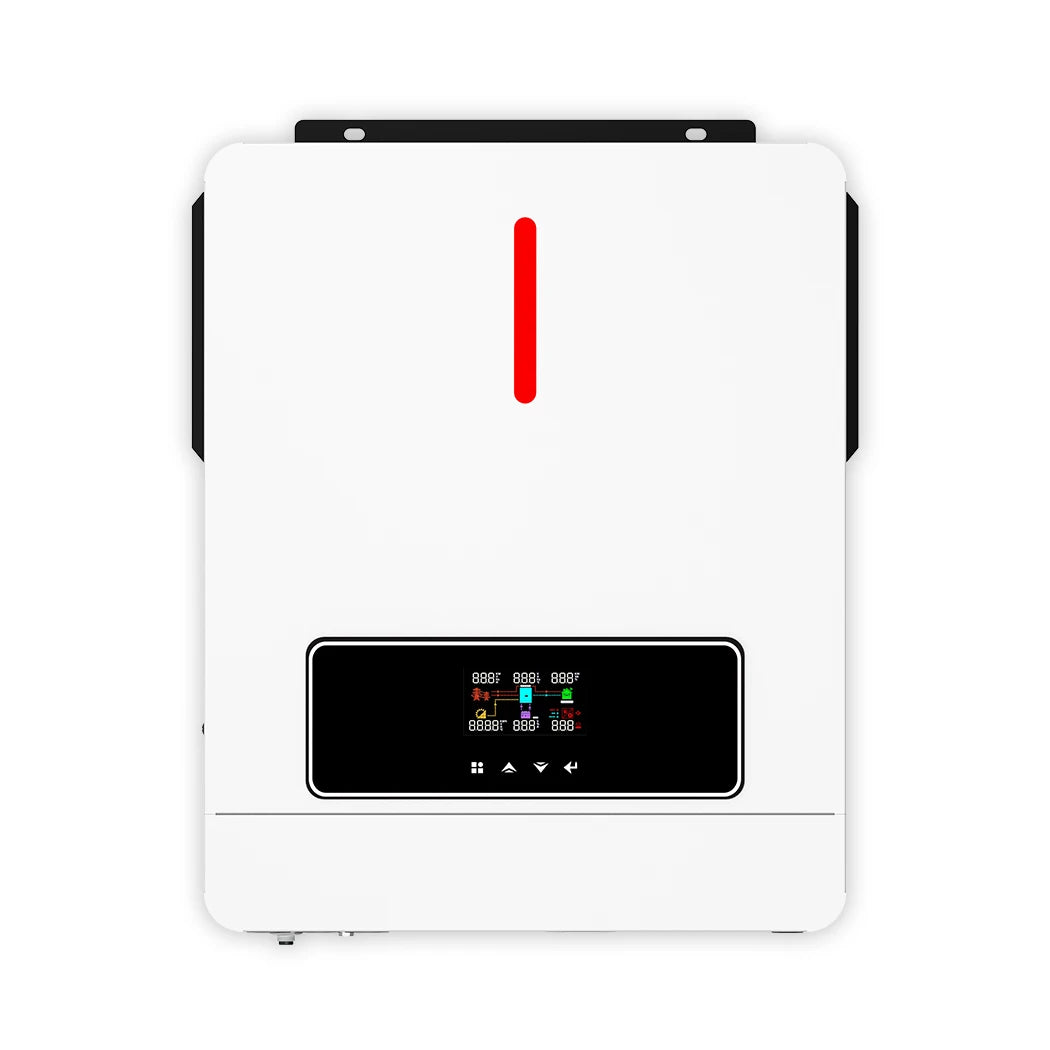

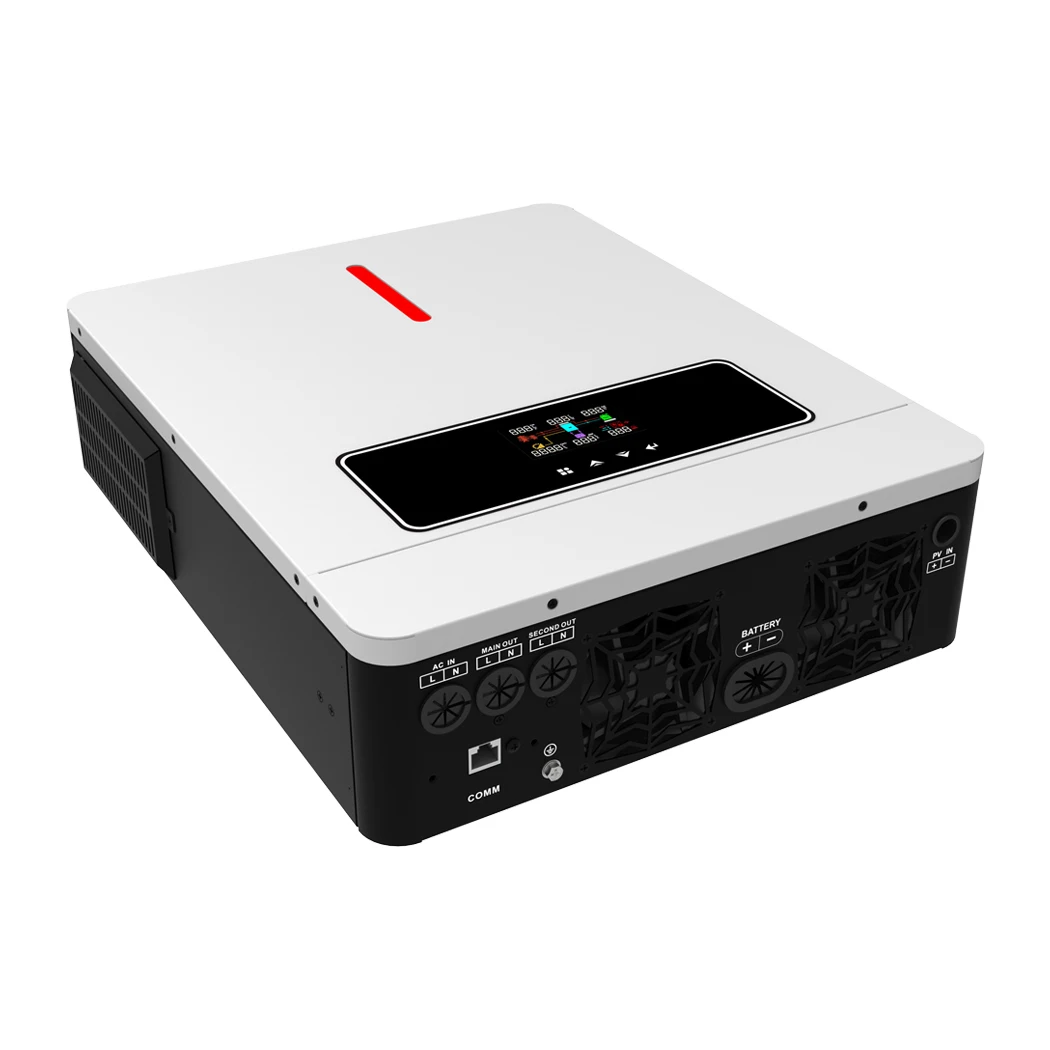

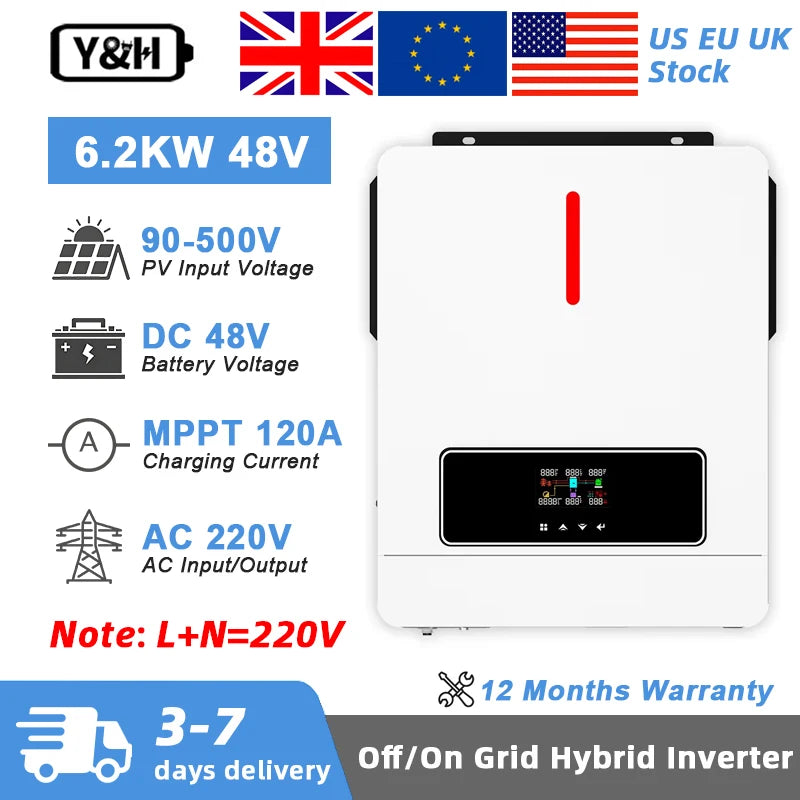

Y&H 6.2KW Hybrid Solar Inverter 48VDC 220VAC On/Off-grid Solar Inverter Dual AC Output MPPT 120A Solar Charger Max PV 500V
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout

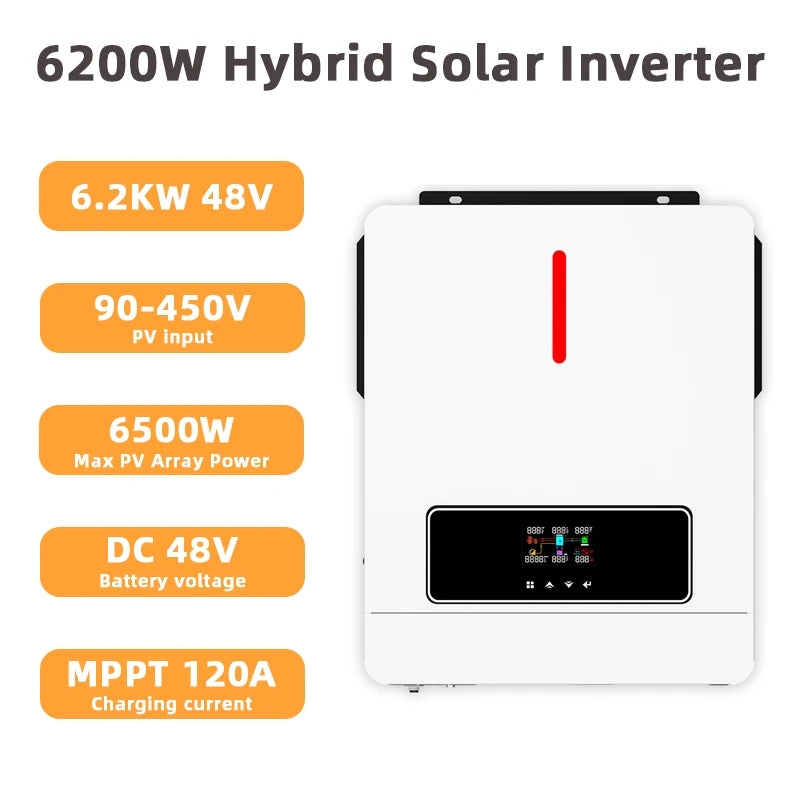

Y&H 6.2KW Hybrid Solar Inverter 48VDC 220VAC On/Off-grid Solar Inverter Dual AC Output MPPT 120A Solar Charger Max PV 500V
SPECIFICATIONS
Brand Name: Y&H
Certification: CE
High-concerned chemical: None
Is Smart Device: Yes

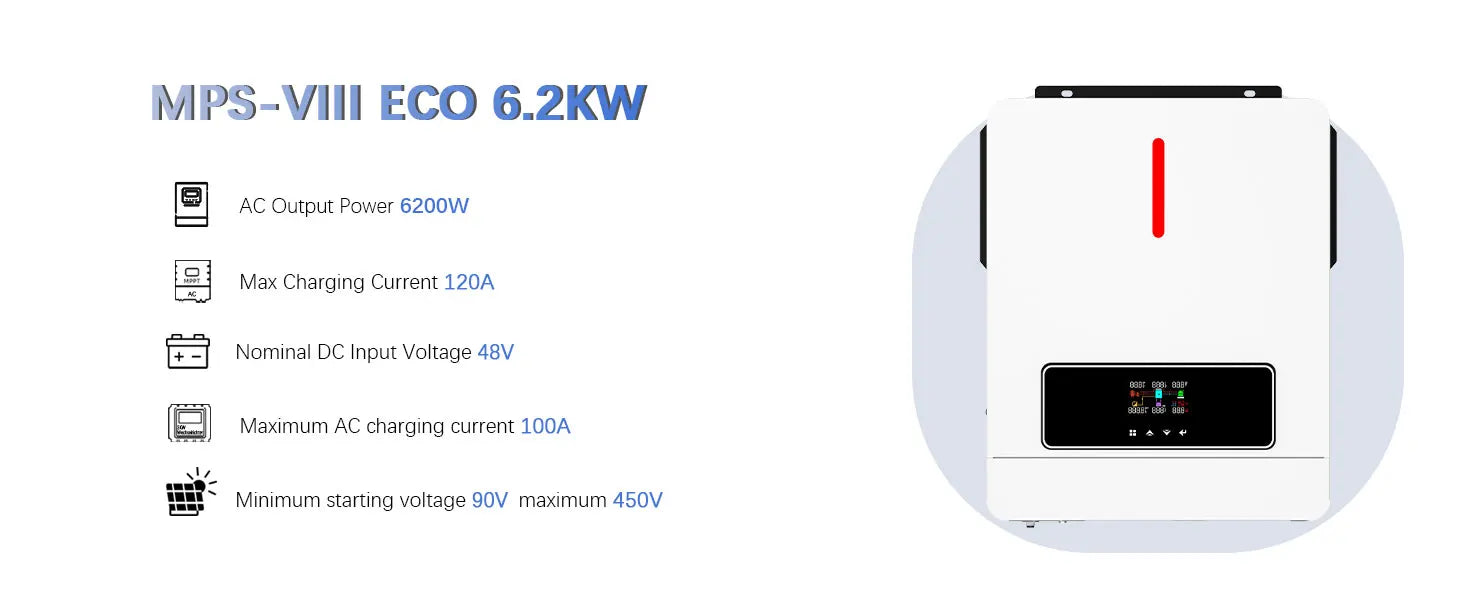

Model Number: MPS-VIII ECO 6.2KW- MPPT 120A
Origin: Mainland China
Output Current: 27A
Output Frequency: 50Hz/60Hz(Auto sensing)
Output Type: SINGLE
Size: 420mm*310mm*110mm
Weight: 10kg
is_customized: Yes

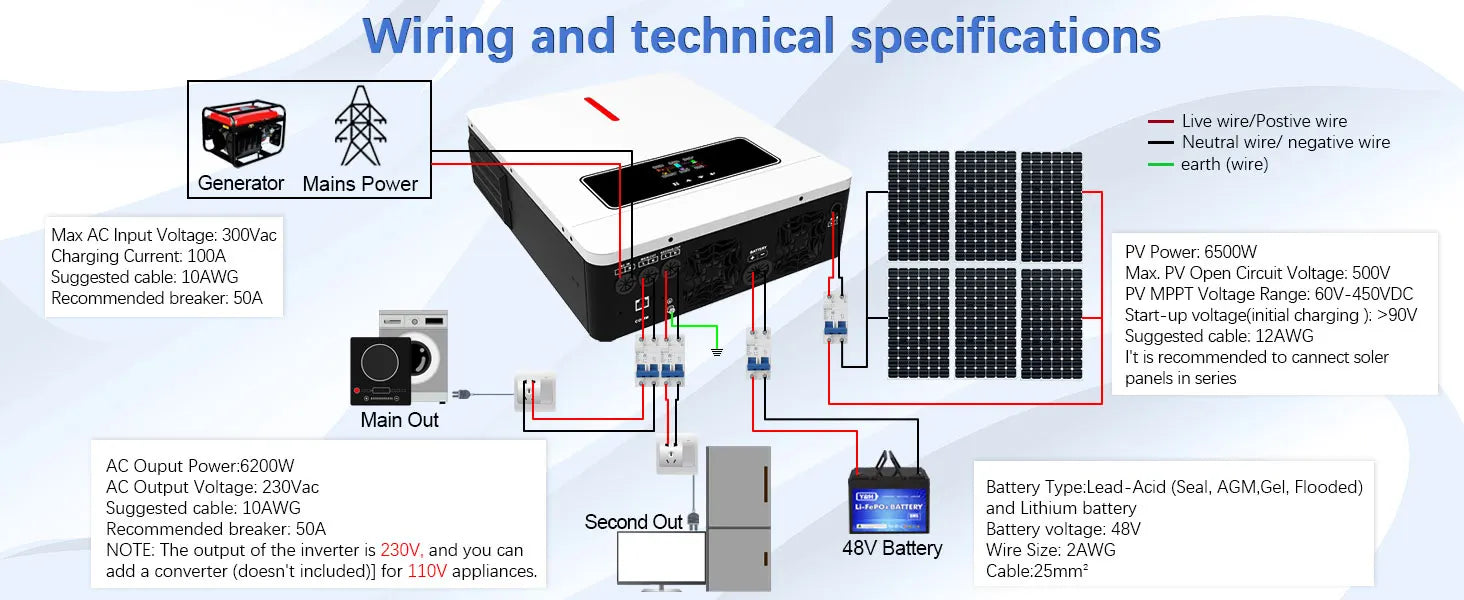

Do not turn on each input at the same time. It is recommended to work for 3 minutes. The inverter is working sufficiently and stably
1: Battery 2: AC input or PV input 3: Load
The inverter exits the system sequence:
1: Load 2: AC input or PV input 3: Turn off the inverter Exit battery
Describe:

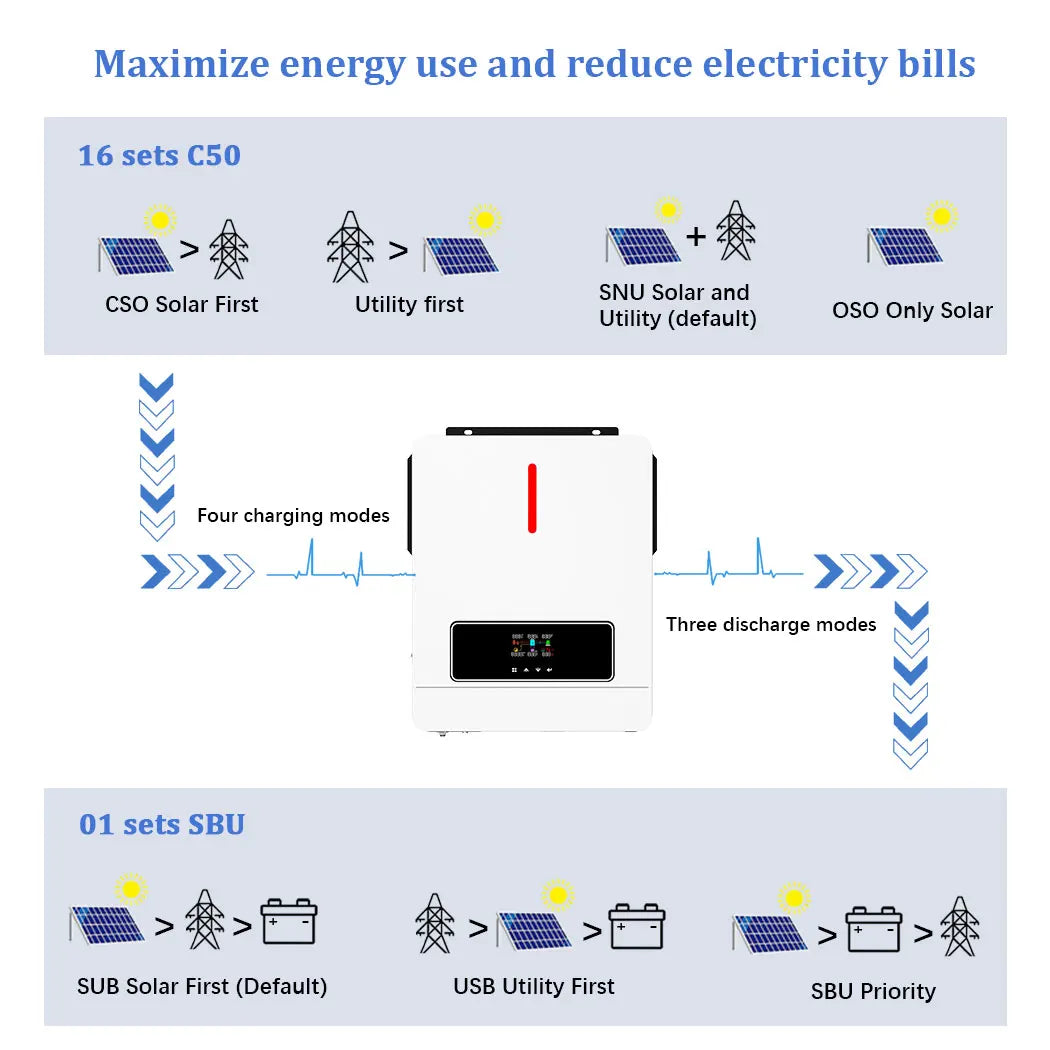

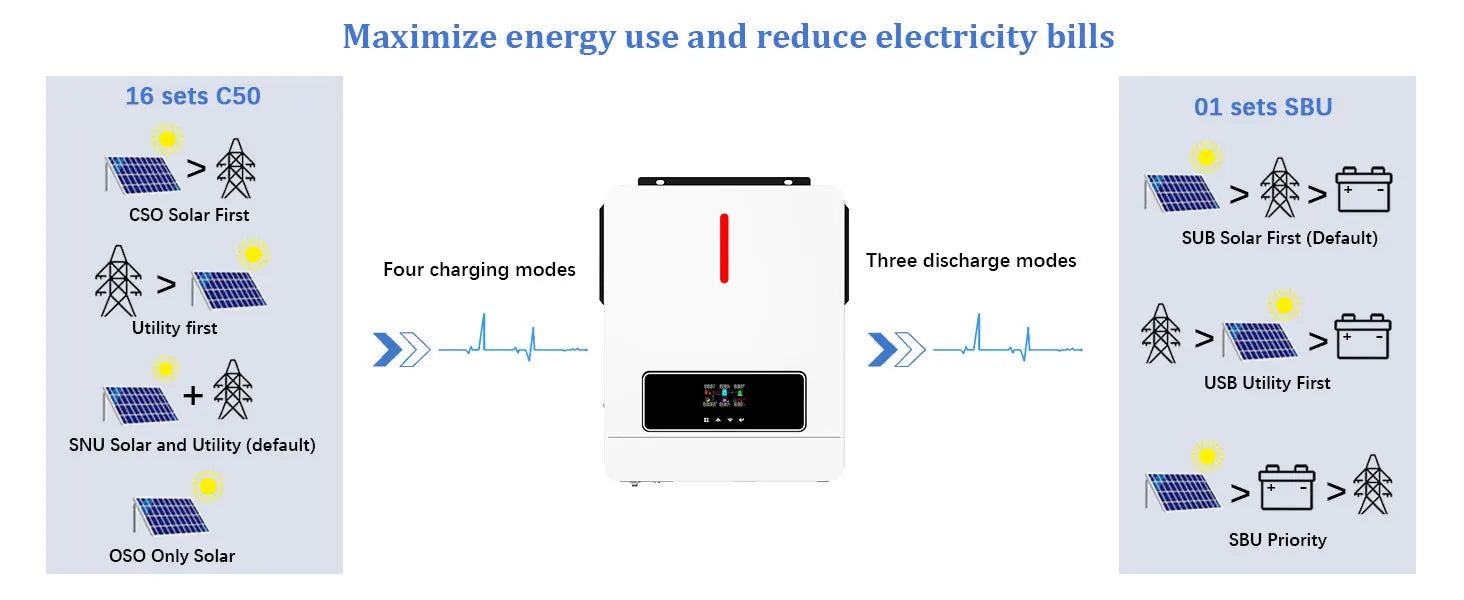

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Specification:
INVERTER MODEL |
4.2KW |
6.2KW |
Output Voltage Waveform |
Pure Sine Wave |
|
Output Frequency |
50Hz |
|
Peak Efficiency |
93% |
|
Nominal DC Input Voltage |
24Vdc |
48Vdc |

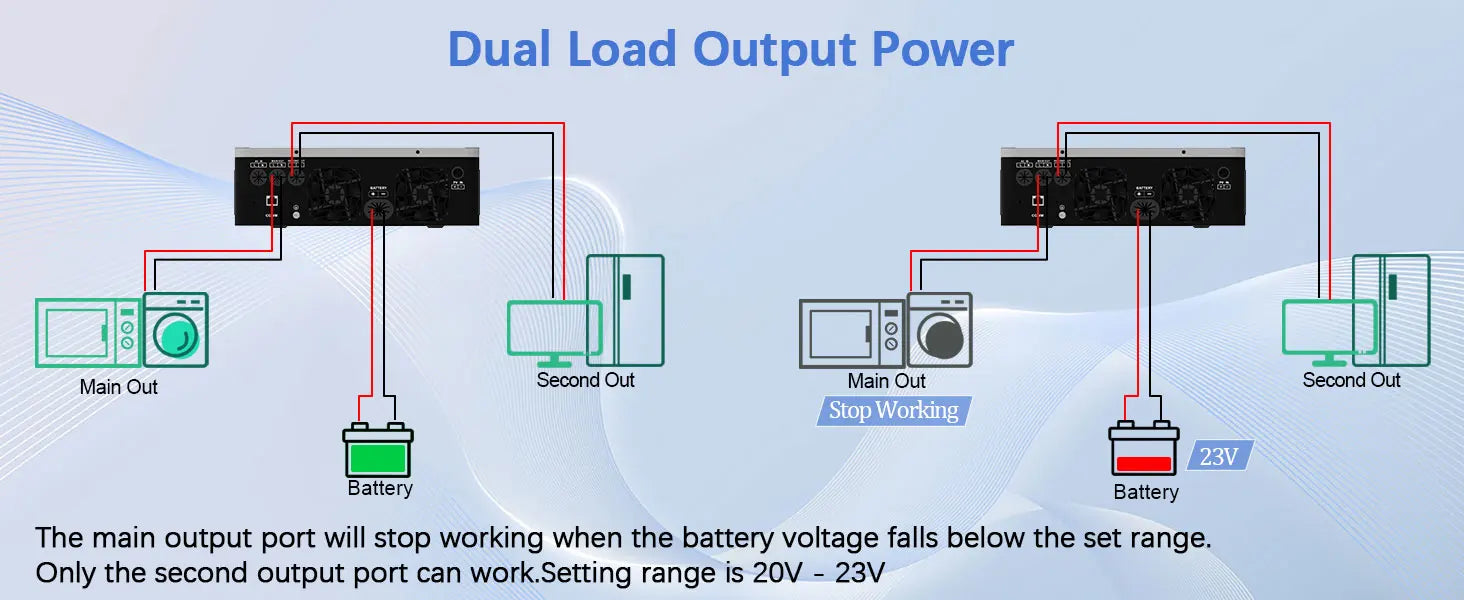

Two Load Output Power | ||
Full Load |
4200W |
6200W |
Maximum Main Load |
4200W |
6200W |
Maximum Second Load(battery model) |
1400W |
2066W |
Main Load Cut off Voltage |
26VDC |
52VDC |
Main Load Return Voltage |
27VDC |
54VDC |
MPPT Solar Charging Mode | ||
Max. PV Array Power |
6200W |
6500W |
Nominal PV Voltage |
240Vdc |
360Vdc |
PV Array MPPT Voltage Range |
60Vdc~500Vdc |
|
Max. PV Array Open Circuit Voltage |
500Vdc |
|
Max Charging Current |
120Amp |
|
Grid-Tie Operation | ||
Nominal Output Voltage |
220/230/240 VAC |
|
Feed-in Grid Voltage Range |
195~253VAC |
|
Nominal Output Current |
18.2A |
26.9A |
Power Factor Range |
>0.99 |
|
Maximum Conversion Efficiency |
97% |
|
General Specifications | ||
Safety Certification |
CE |
|
Operating Temperature Range |
-10°C to 50°C |
|
Storage temperature |
-15°C~ 60℃ |
|
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
|
| Color |
6.2KW-BMS |
|---|---|
| Output Voltage |
AC 220-240V |
| Ships From|Input Voltage |
GERMANY|48V BAT, United States|48V BAT, UNITED KINGDOM|48V BAT |
